Accu-Scope EXC-250 HD Digital Microscope Package

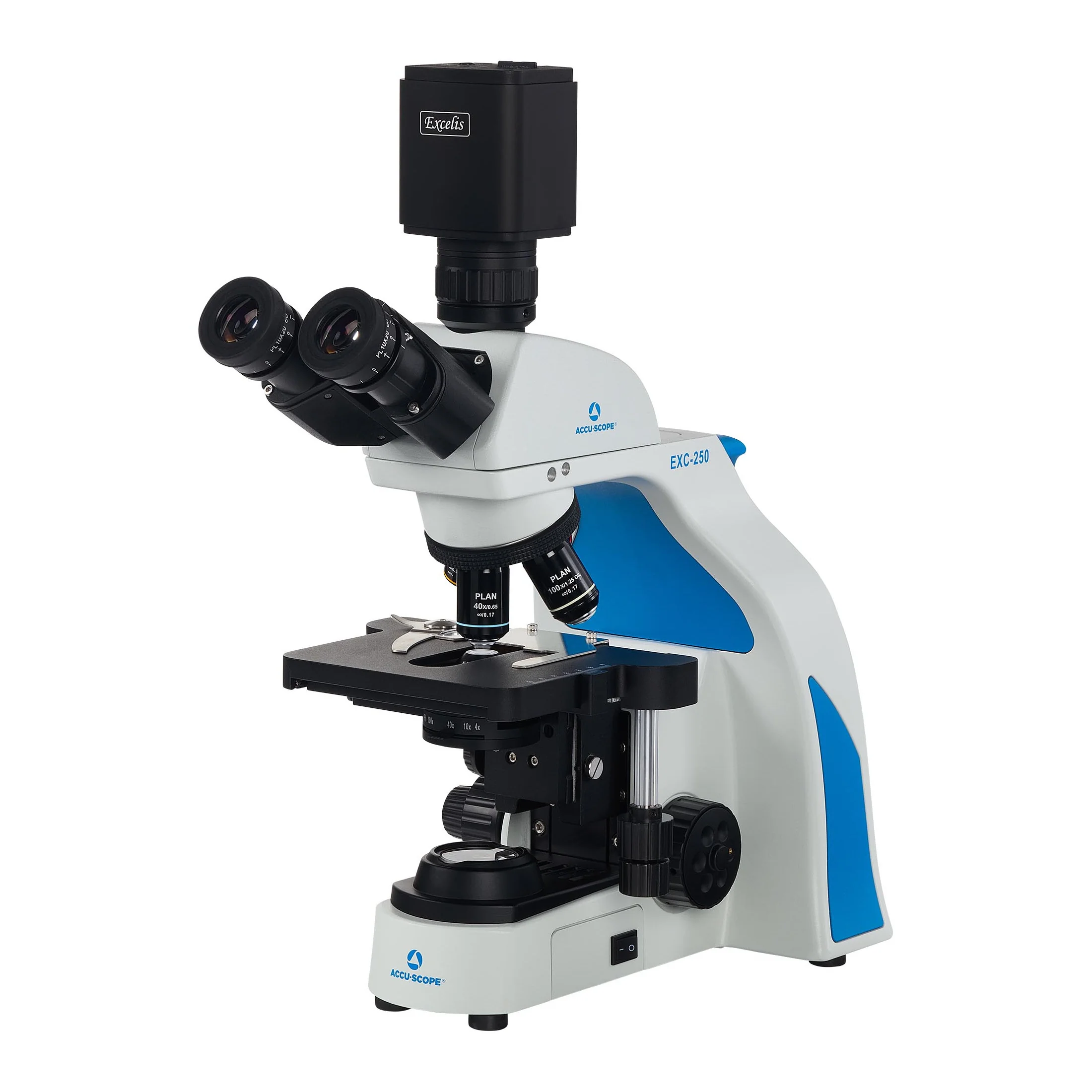

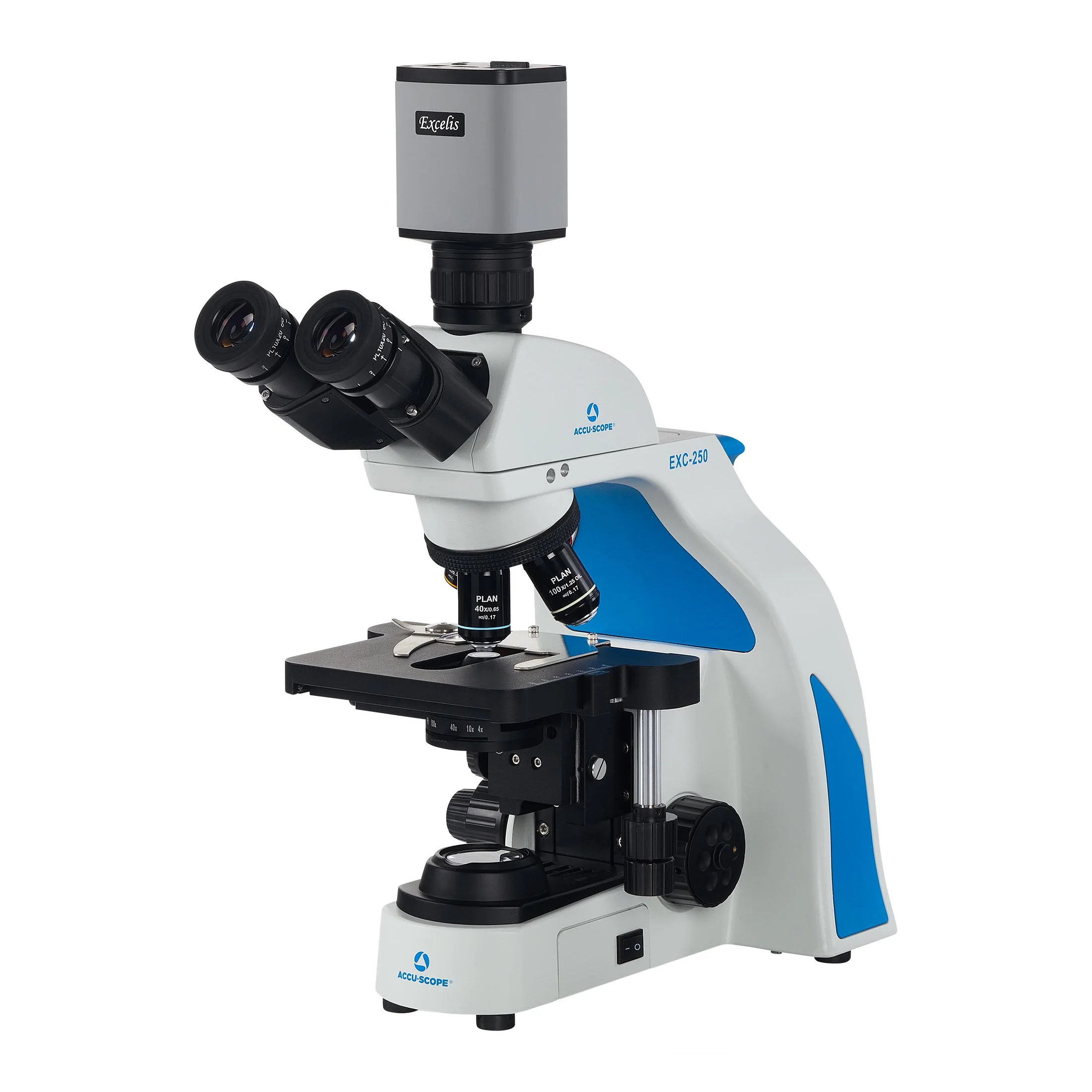

This EXC-250 HD digital microscope package includes your choice of camera, and is a complete digital microscope solution. This package includes all necessary adapters and software for capturing digital video and images, annotations, measurements, and more! The microscope comes complete with trinocular head and c-mount adapter. The 10x eyepieces provide you with a 20mm wide field of view while the infinity plan achromat 4x, 10x, 40x, and 100x oil objectives provide flat crisp images. The LED illumination system provides little to no heat and avoids downtime for bulb changes. The Accu-Scope EXC-250 can be configured with many optional parts and accessories making it suitable for a wide range of applications.

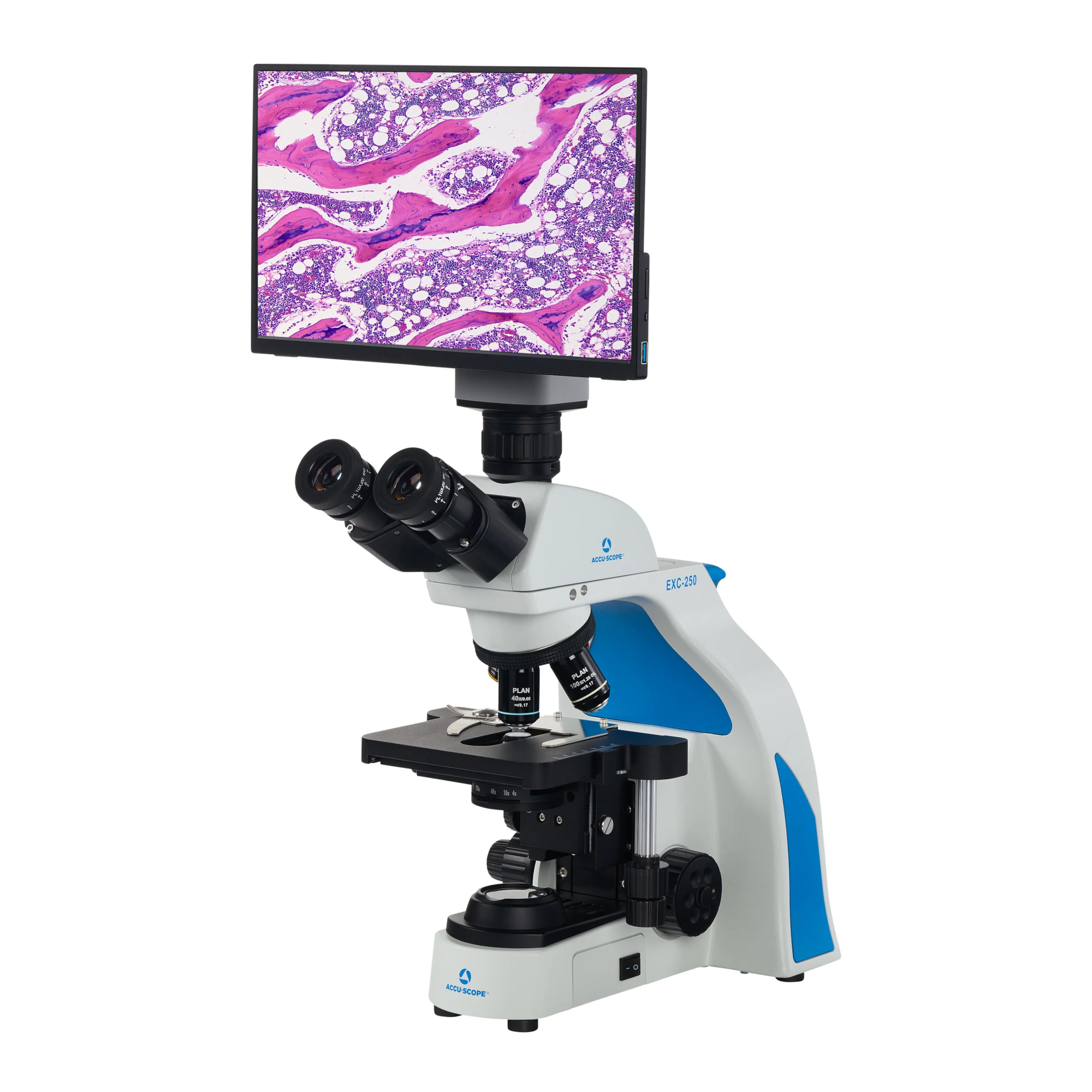

You can choose your Excelis camera model for this microscope, all models output HDMI to a monitor or USB to a computer. There are two base camera models the AU-300 or AU-600 the main difference is that the AU-600 has 6.0 M.P. and a slightly higher quality camera sensor while the AU-300 has 5.0 M.P. Both cameras have the option for an 13.3" HD retina display screen mounted to the camera for an all in one streamlined solution. If you would like the screen please choose form the AU-300-HDS or AU-600-HDS option. Any of these camera models come with software to capture images / videos, do measurements, extended depth of focus, annotations, stitching, and more!
| Accu-Scope EXC-250 Specifications | |
|---|---|
| Head: | Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Infinity Plan Achromat 4x, 10x, 40xR*, or 100xR oil* (*spring-loaded) Other Objectives |
| Condenser: | N.A. 1.25 Abbe condenser with options for phase and darkfield sliders |
| Stage: | Rackless Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |

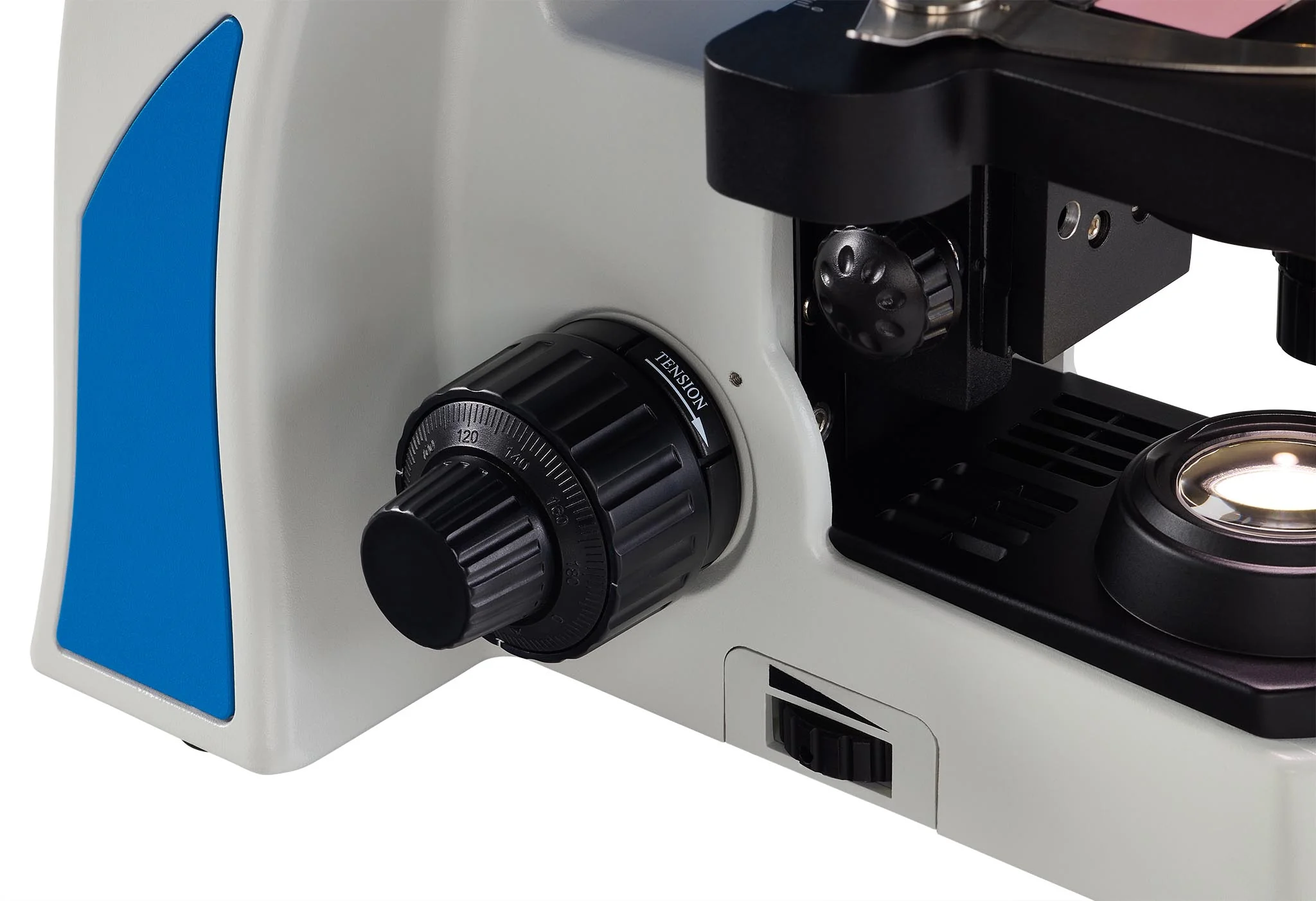

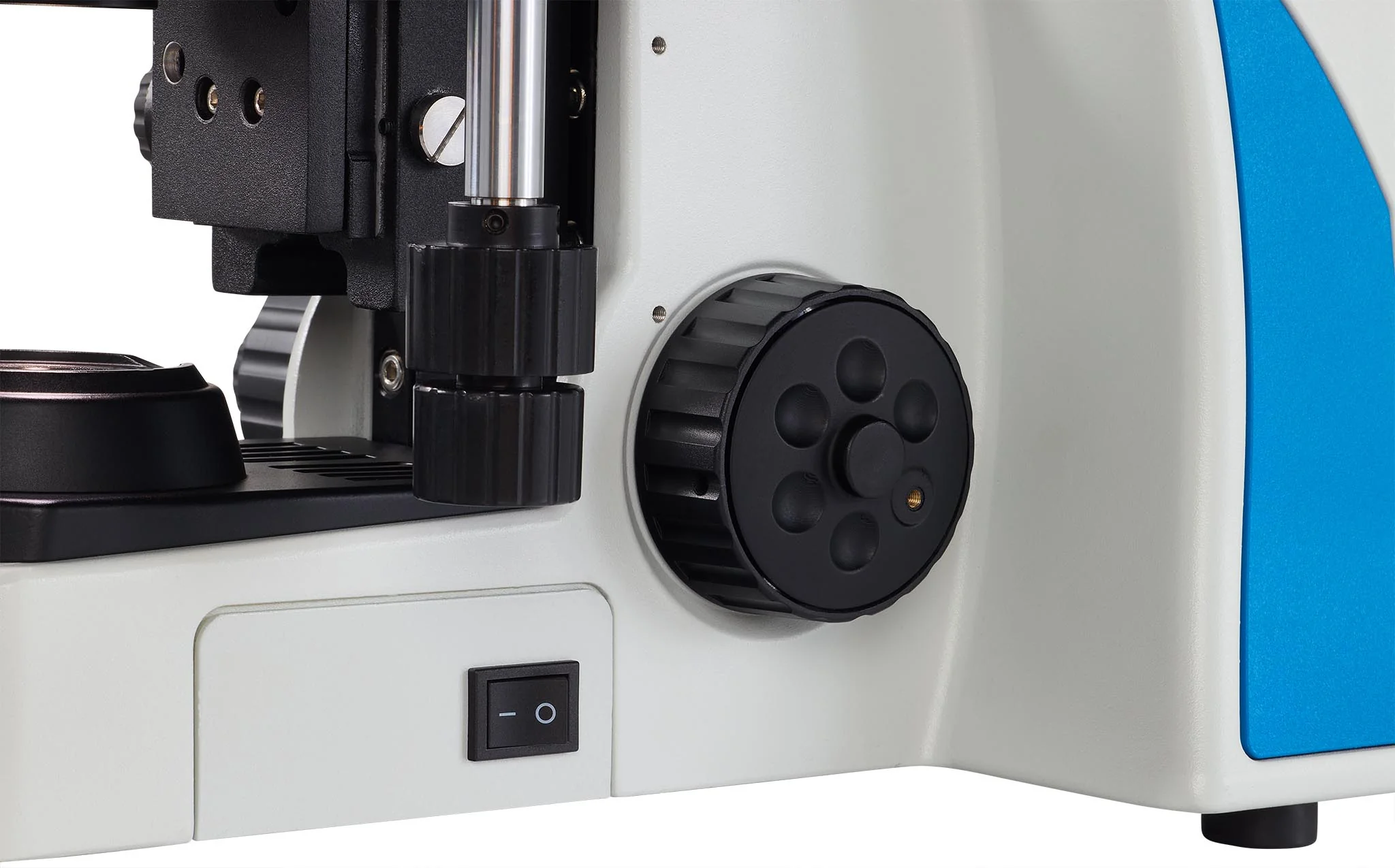

| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
| AU-300-HD / AU-300-HDS Specifications | |
|---|---|
| Screen: | Optional 13.3" Screen - AU-300-HDS Option |
| Resolution (Live): | 1920X1080 - Captured 5 M.P. |
| Sensor: |
1/2.8 (0.35x C-mount recommended); SONY Starvis IMX335LQN-C |
| Frame Rate: |
HDMI (30fps) USB 2.0 (15fps) |
| Image Capture: |
High Speed SD Card (8GB) Accepts Class 10 SD Card, 32GB Max |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 1ms - 2sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision+v3.0 Imaging Software (for PC/Windows and Mac OS) Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield, ROI and mask, histogram, smoothing; fluorescence image settings; fluorescence multi-color channel mixer merge; Image Types: JPG, PNG, TIF and DICOM |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: |
Intel Core i5 processor (Dual Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher
|
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
| AU-600-HD / AU-600-HDS Specifications | |
|---|---|
| Screen: | Optional 11.3" Screen - AU-600-HDS Option |
| Resolution (Live): | 3264 x 1836 6 M.P. |
| Sensor: | 1/2.8 (0.35x C-mount recommended); SONY IMX236 |
| Frame Rate: | HDMI (25ps); USB 2.0 (30fps) |
| Image Capture: | High Speed SD Card (8GB) Accepts Class 10 SD Card, 35 GB Max |
| Video Capture: | HDMI: 1080p, 25fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Exposure, Gain, Gamma, Saturation, Brightness, Noise Reduction, Whate Balance |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision+ Imaging Software (for PC/Windows and Mac OS) Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield, ROI and mask, histogram, smoothing; fluorescence image settings; fluorescence multi-color channel mixer merge; Image Types: JPG, PNG, TIF and DICOM (available for Mac OS with CaptaVision+ v3.0) |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Requirements: |
Intel Core i5 processor (Quad Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher Windows 7, 8, 10, 11 (64-bit recommended); Mac OS 10.4 or higher |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
Accessories
Brochure
Accu-Scope EXC-250 Brochure
Original: $2,369.00
-70%$2,369.00
$710.70
