Accu-Scope EXC-120 Cytology Microscope

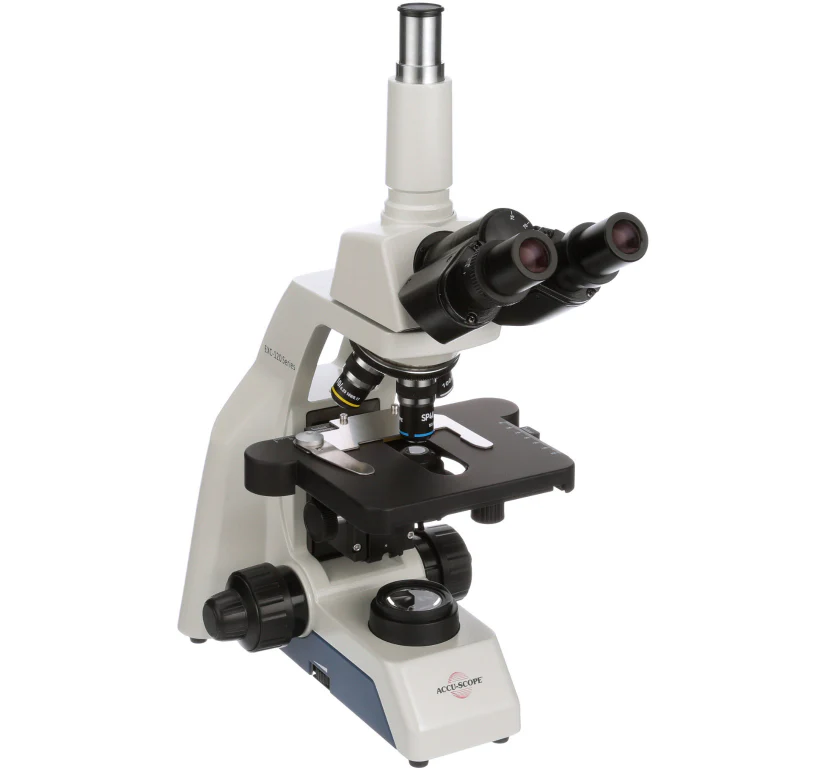

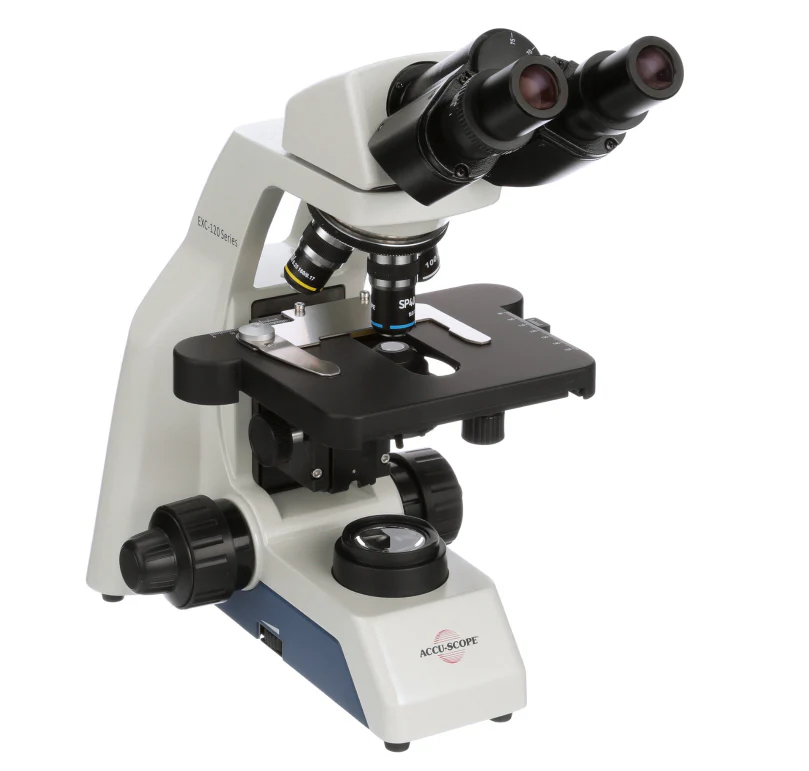

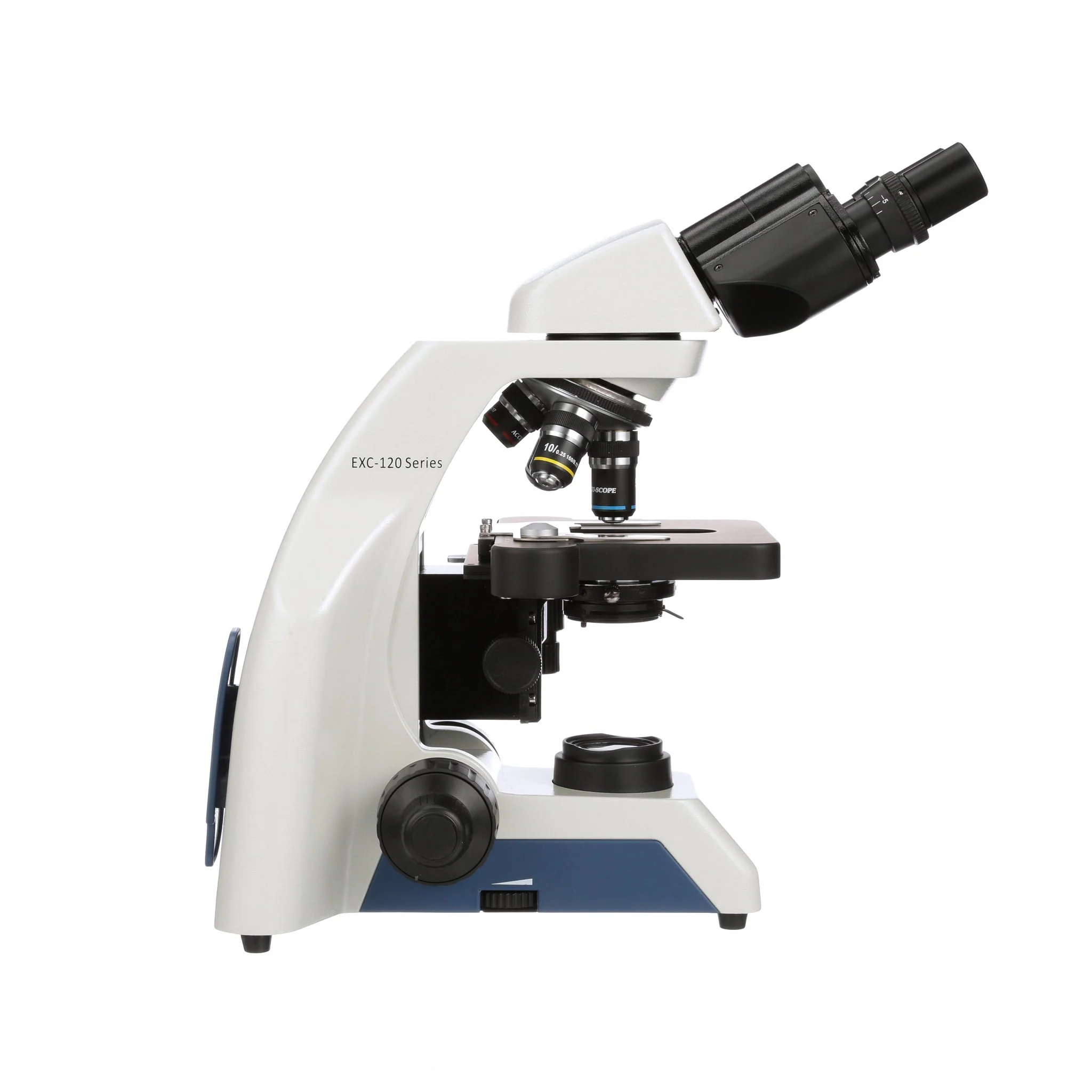

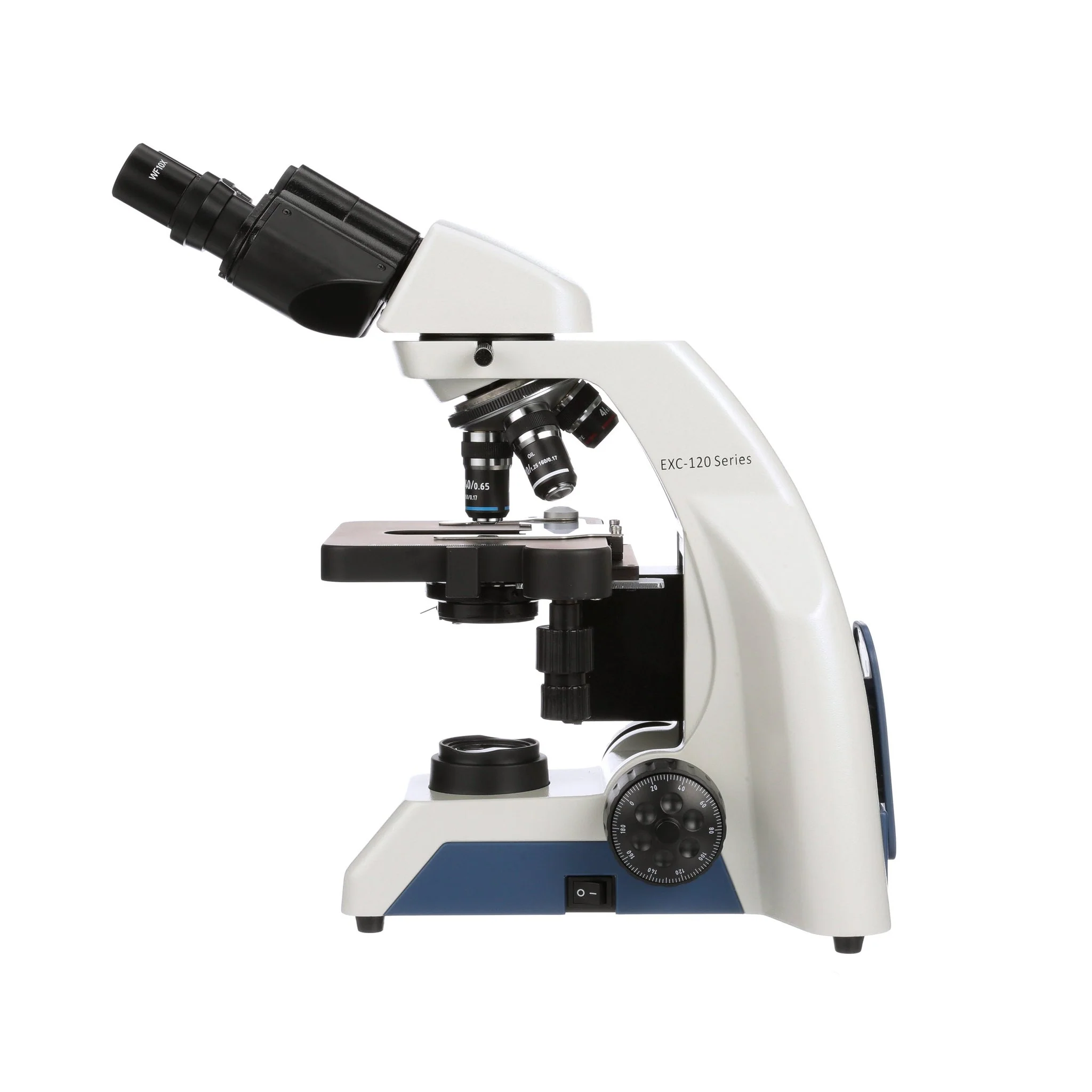

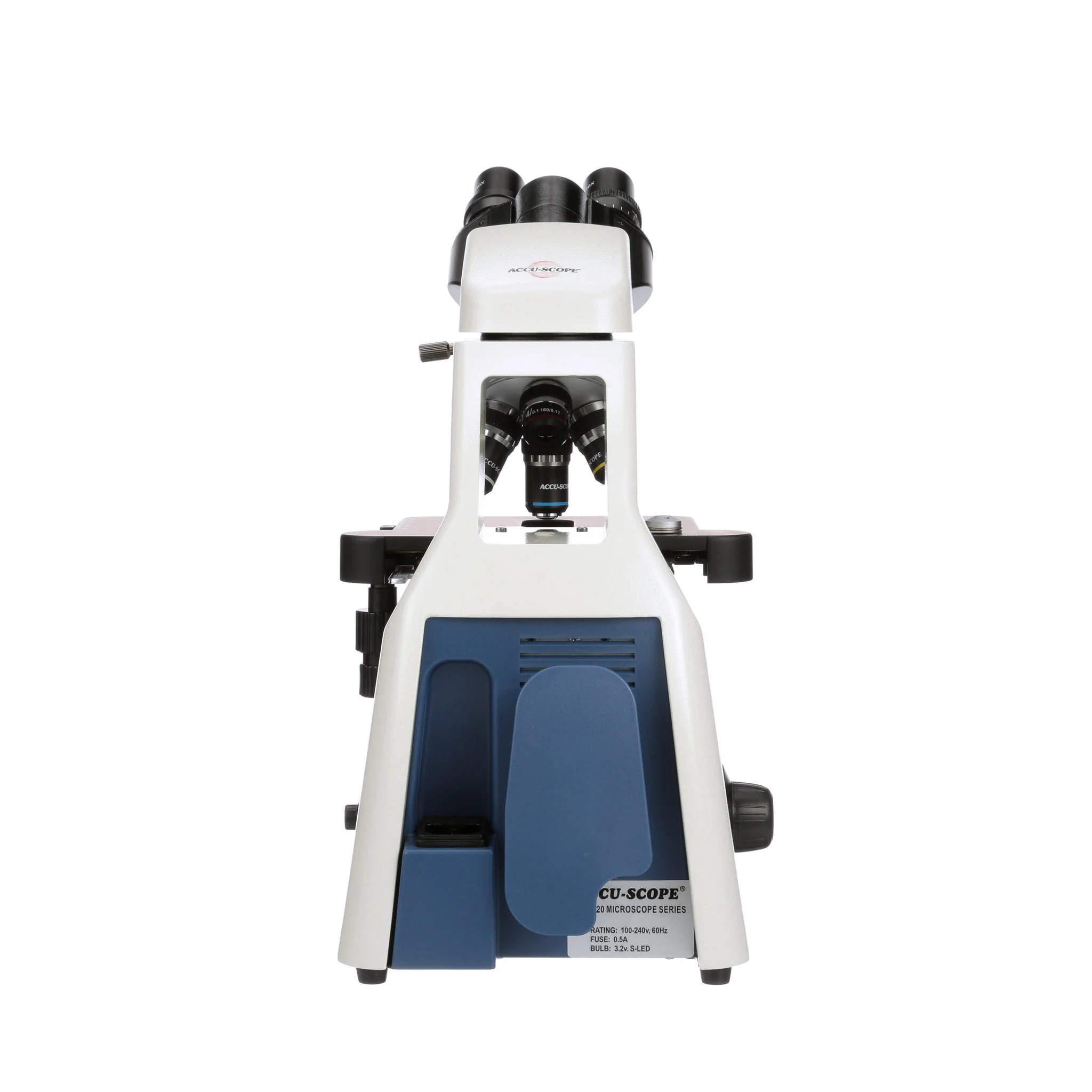

The Accu-Scope EXC-120 Cytology microscope is a more compact microscope packed with features unheard of in this price point! The microscope includes 10x eyepieces with Achromat 4x, 10x, and 40x objectives. You can choose between a binocular or trinocular head, either comes standard with LED illumination. This microscope uses a rackless mechanical stage, has a build in cord wrap, and carry handle. The microscope is designed with quality in mind, using all metal gears and a solid construction and feel.
| Specifications: | |
|---|---|
| Head: | Binocular, or trinocular, Inclined 30° and rotatable 360°, Interpupillary distance adjustment |
| Eyepieces: | WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent tampering and accept 19mm reticles |
| Nosepiece: | Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration |
| Objectives: | DIN Semi-Plan Achromat 4x, 10x, 40x |
| Stage: | Rackless XY Stage size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm |
| Condenser: | N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder |
| Stand: | Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger |
| Focusing: | Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears |
| Illumination: | Variable LED illumination; bulb life rated for 20,000 hours |
| Accessories: | Dust cover, immersion oil and instruction manual included |
| Warranty: | 5 year limited warranty for parts, labor and electronic components. 1 year warranty on LED bulb |
Accessories
Achromat / Semi-Plan Objectives
Brochure
Accu-Scope EXC-120 BrochureOriginal: $841.00
-70%$841.00
$252.30
Description
The Accu-Scope EXC-120 Cytology microscope is a more compact microscope packed with features unheard of in this price point! The microscope includes 10x eyepieces with Achromat 4x, 10x, and 40x objectives. You can choose between a binocular or trinocular head, either comes standard with LED illumination. This microscope uses a rackless mechanical stage, has a build in cord wrap, and carry handle. The microscope is designed with quality in mind, using all metal gears and a solid construction and feel.
| Specifications: | |
|---|---|
| Head: | Binocular, or trinocular, Inclined 30° and rotatable 360°, Interpupillary distance adjustment |
| Eyepieces: | WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent tampering and accept 19mm reticles |
| Nosepiece: | Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration |
| Objectives: | DIN Semi-Plan Achromat 4x, 10x, 40x |
| Stage: | Rackless XY Stage size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm |
| Condenser: | N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder |
| Stand: | Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger |
| Focusing: | Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears |
| Illumination: | Variable LED illumination; bulb life rated for 20,000 hours |
| Accessories: | Dust cover, immersion oil and instruction manual included |
| Warranty: | 5 year limited warranty for parts, labor and electronic components. 1 year warranty on LED bulb |
