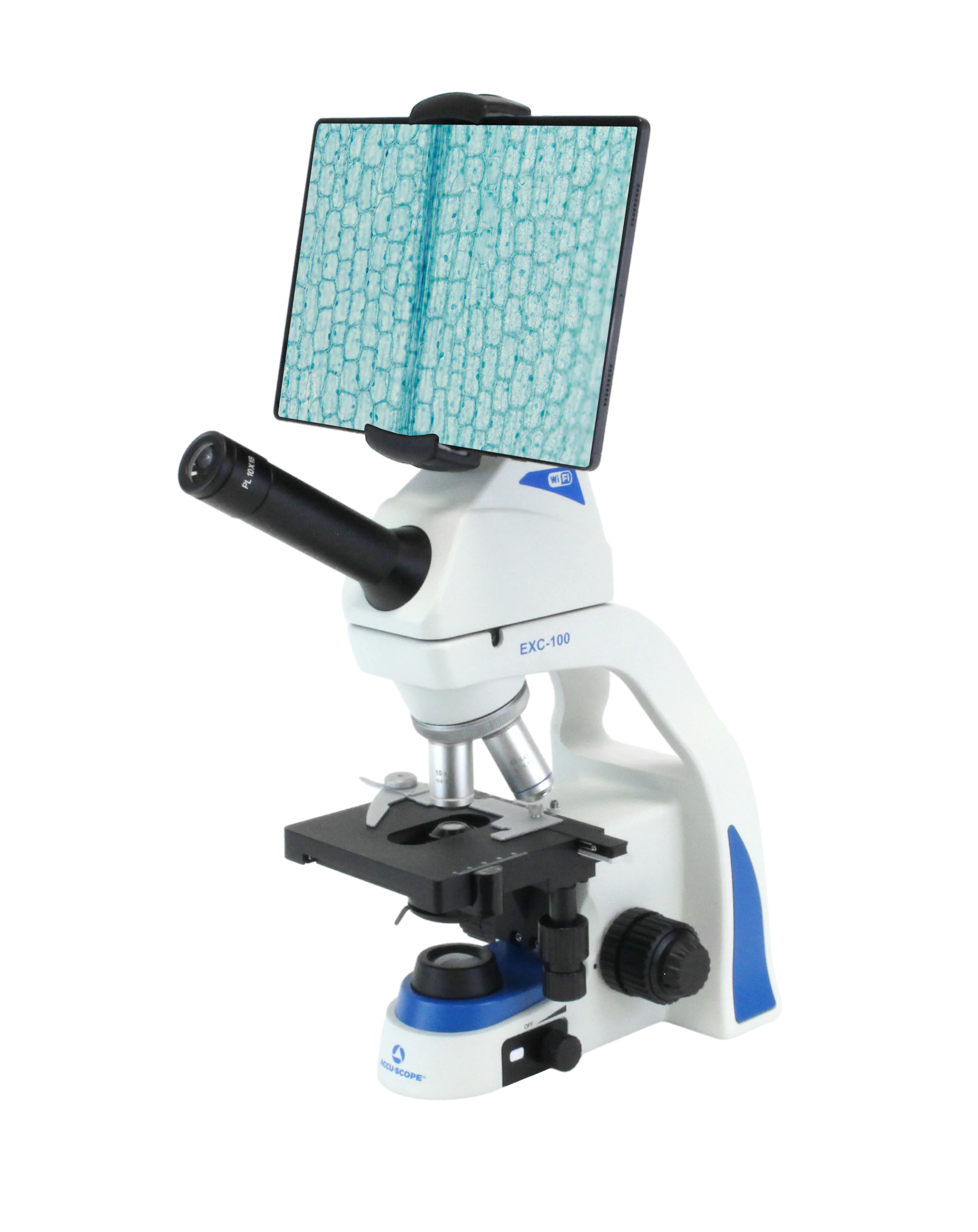

Accu-Scope EXC-100 Monocular Microscope With WiFi Camera
The Accu-Scope EXC-100 WiFi microscope is designed for educational use from middle / high school, to light college / university level. This model has a monocular head with a built-in WiFi camera. The included Android tablet provides a streamlined design with a live image right above the eyepiece. Easily view, capture, measure, share, and more without any external device. You can view through the 10x eyepiece while an image is being displayed on the screen. The four position nosepiece has a rear facing design to prevent students from tampering with the front of the objectives. This microscope comes with DIN Achromat 4x, 10x, 40x, objectives with the option to add a 100x oil objective. The XY mechanical stage allows you to effortless move your slide. The abbe condenser has a 1.25 N.A. and can accept filters. For ease of use this microscope comes with variable and rechargeable LED illumination. The microscope is engineered to be solid an robust for student use while incorporating student friendly features like:
- 360 Degree Rotating Head
- Eyepieces That Lock In To Avoid Tampering
- Reversed Style Nosepiece
- Intergraded Cord Wrap
| Specifications: | |
|---|---|
| Head: | Monocular w/ Built-In WiFi Camera & Andriod Tablet |
| Eyepiece: | WF10x eyepiece, 18mm field of view, pointer in one eyepiece |
| Nosepiece: | Rear-facing, 4-position nosepiece with positive click stops to ensure objective alignment |
| Objectives: |
EXC-101-WM - DIN Achromat 4x, 10x, 40xR Objectives Or EXC-101-WM3 - DIN Achromat 4x, 10x, 40x,R, 100x Oil Objectives |
| Stage: | Double-layer mechanical stage, right side XY controllers, 115x125mm, slide holder |
| Condenser: | N.A. 1.25 condenser, iris diaphragm, filter holder |
| Stand: | Cast aluminum alloy with built-in carry handle and power cord wrap |
| Focusing: | Coaxial coarse and fine focus, focus tension adjustment; focus travel stop |
| Illumination: | Variable and rechargeable† 0.2W LED illuminator (†requires three AA 1300mAh 1.2V NiMH batteries, included) |
| Camera: | Built-In 2.0 MP WiFi Camera w/ Android Tablet With MicroSNAP Software |
| Accessories: | Instruction Manual |
| Warranty: | 5 year limited warranty for parts, labor and electronic components. 1 year warranty on LED bulb |
Accessories
Brochure
Accu-Scope EXC-100 Brochure
Description
The Accu-Scope EXC-100 WiFi microscope is designed for educational use from middle / high school, to light college / university level. This model has a monocular head with a built-in WiFi camera. The included Android tablet provides a streamlined design with a live image right above the eyepiece. Easily view, capture, measure, share, and more without any external device. You can view through the 10x eyepiece while an image is being displayed on the screen. The four position nosepiece has a rear facing design to prevent students from tampering with the front of the objectives. This microscope comes with DIN Achromat 4x, 10x, 40x, objectives with the option to add a 100x oil objective. The XY mechanical stage allows you to effortless move your slide. The abbe condenser has a 1.25 N.A. and can accept filters. For ease of use this microscope comes with variable and rechargeable LED illumination. The microscope is engineered to be solid an robust for student use while incorporating student friendly features like:
- 360 Degree Rotating Head
- Eyepieces That Lock In To Avoid Tampering
- Reversed Style Nosepiece
- Intergraded Cord Wrap
| Specifications: | |
|---|---|
| Head: | Monocular w/ Built-In WiFi Camera & Andriod Tablet |
| Eyepiece: | WF10x eyepiece, 18mm field of view, pointer in one eyepiece |
| Nosepiece: | Rear-facing, 4-position nosepiece with positive click stops to ensure objective alignment |
| Objectives: |
EXC-101-WM - DIN Achromat 4x, 10x, 40xR Objectives Or EXC-101-WM3 - DIN Achromat 4x, 10x, 40x,R, 100x Oil Objectives |
| Stage: | Double-layer mechanical stage, right side XY controllers, 115x125mm, slide holder |
| Condenser: | N.A. 1.25 condenser, iris diaphragm, filter holder |
| Stand: | Cast aluminum alloy with built-in carry handle and power cord wrap |
| Focusing: | Coaxial coarse and fine focus, focus tension adjustment; focus travel stop |
| Illumination: | Variable and rechargeable† 0.2W LED illuminator (†requires three AA 1300mAh 1.2V NiMH batteries, included) |
| Camera: | Built-In 2.0 MP WiFi Camera w/ Android Tablet With MicroSNAP Software |
| Accessories: | Instruction Manual |
| Warranty: | 5 year limited warranty for parts, labor and electronic components. 1 year warranty on LED bulb |
