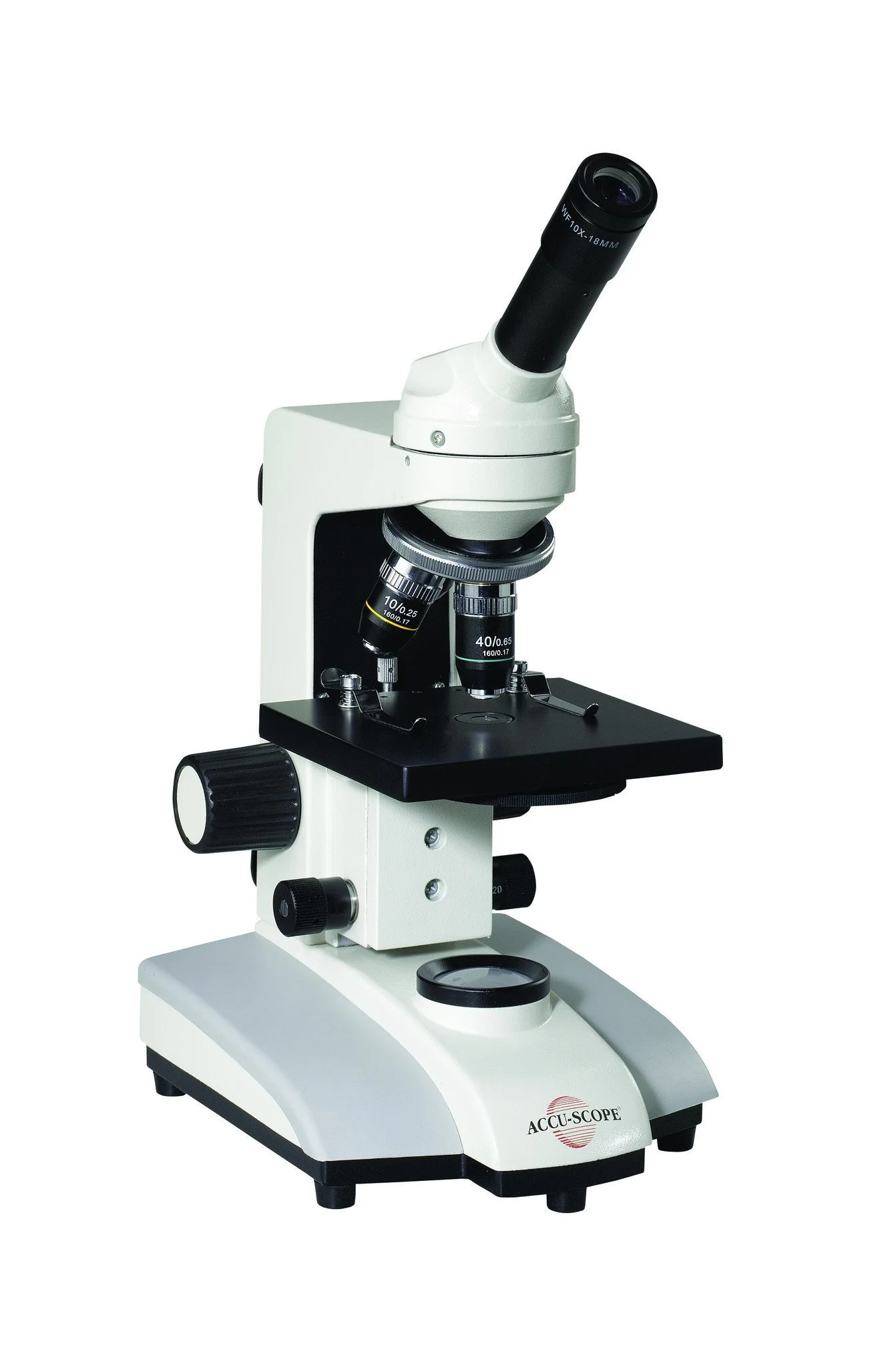

Accu-Scope 3080 Digital Microscope Package
The free software allows for image or video capture, annotation, and measurements.
| Microscope Specifications | |
|---|---|
| Head: | Monocular viewing head, inclined 45°, rotatable 360° |
| Eyepieces: | WF10x/18mm eyepiece with pointer |
| Nosepiece: | Reversed quadruple nosepiece |
| Objectives: |
DIN 4x, 10x and 40xR objectives - Optional 100x Oil Available |
| Condenser: | N.A. 1.25 Abbe condenser with options for phase and darkfield sliders |
| Stage: | Flat top stage with stage clips, disc diaphragm |
| Illumination: | 7 watt fluorescent illuminator, cord hanger, and dust cover |
| Focusing: | Separate coarse and fine focusing controls |
| Accessories: | Dust cover & Instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
| Camera Specifications | ||||||
|---|---|---|---|---|---|---|
| Max Resolution |
2048 x 1536 3 M.P. | |||||
| Sensor | 1/2.7" | |||||
| Video Format & Frame Rate |
3fps @2048 x 1536, 5fps @1600 x 1200, 7.5fps @1280 x 1024, 30fps @ Other Resolutions |
|||||
| Capabilities | Image & Video Capture | |||||
| White Balance | Auto | |||||
| System Compatibility |
Microsoft® Windows® XP / Vista / 7 / 8 (32 & 64 bit) |
|||||
| System Requirements |
|
|||||
| Power Supply |
DC 5V over PC USB Port |
|||||
| Warranty | 1 year | |||||
Original: $420.00
-70%$420.00
$126.00
Description
The free software allows for image or video capture, annotation, and measurements.
| Microscope Specifications | |
|---|---|
| Head: | Monocular viewing head, inclined 45°, rotatable 360° |
| Eyepieces: | WF10x/18mm eyepiece with pointer |
| Nosepiece: | Reversed quadruple nosepiece |
| Objectives: |
DIN 4x, 10x and 40xR objectives - Optional 100x Oil Available |
| Condenser: | N.A. 1.25 Abbe condenser with options for phase and darkfield sliders |
| Stage: | Flat top stage with stage clips, disc diaphragm |
| Illumination: | 7 watt fluorescent illuminator, cord hanger, and dust cover |
| Focusing: | Separate coarse and fine focusing controls |
| Accessories: | Dust cover & Instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
| Camera Specifications | ||||||
|---|---|---|---|---|---|---|
| Max Resolution |
2048 x 1536 3 M.P. | |||||
| Sensor | 1/2.7" | |||||
| Video Format & Frame Rate |
3fps @2048 x 1536, 5fps @1600 x 1200, 7.5fps @1280 x 1024, 30fps @ Other Resolutions |
|||||
| Capabilities | Image & Video Capture | |||||
| White Balance | Auto | |||||
| System Compatibility |
Microsoft® Windows® XP / Vista / 7 / 8 (32 & 64 bit) |
|||||
| System Requirements |
|
|||||
| Power Supply |
DC 5V over PC USB Port |
|||||
| Warranty | 1 year | |||||
