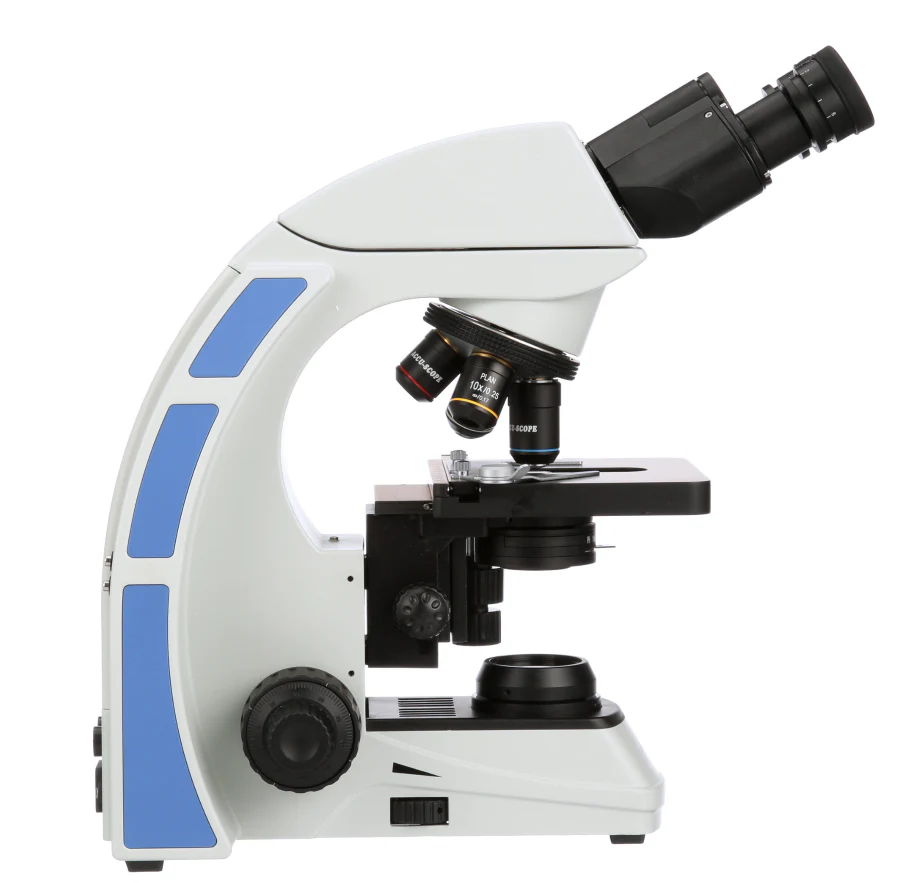

Accu-Scope 3000 Semen Analysis Microscope
The Accu-Scope 3000-LED configured for Semen Analysis includes phase contrast objectives. You can select between a binocular or trinocular viewing head. A pair of 10x eyepieces come standard, and they offer a 20mm field of view. This will come with a 4x infinity plan achromat brightfield objective and 10x, 20x, 40x infinity plan achromat phase contrast objectives. The phase sliders are pre-centered and the microscope operates on a 3 watt LED bulb.
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepieces, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Plan Achromat 4x, Phase 10x, 20x, 40x |
| Condenser: | N.A. 1.25 Abbe condenser with phase contrast sliders |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
Accu-Scope 3000 / 3001 LED BrochureOriginal: $2,193.00
-70%$2,193.00
$657.90
Description
The Accu-Scope 3000-LED configured for Semen Analysis includes phase contrast objectives. You can select between a binocular or trinocular viewing head. A pair of 10x eyepieces come standard, and they offer a 20mm field of view. This will come with a 4x infinity plan achromat brightfield objective and 10x, 20x, 40x infinity plan achromat phase contrast objectives. The phase sliders are pre-centered and the microscope operates on a 3 watt LED bulb.
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
| Eyepieces: | HWF Plan 10x eyepieces, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece |
| Nosepiece: | Reversed, quadruple |
| Objectives: | Plan Achromat 4x, Phase 10x, 20x, 40x |
| Condenser: | N.A. 1.25 Abbe condenser with phase contrast sliders |
| Stage: | Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm |
| Illumination: |
3 watt LED with variable intensity control Universal power supply 110-220v |
| Focusing: | Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
