Accu-Scope 3000 Live Blood Analysis - Darkfield Slider

Accu-Scope 3000 Live Blood Analysis - Darkfield Slider

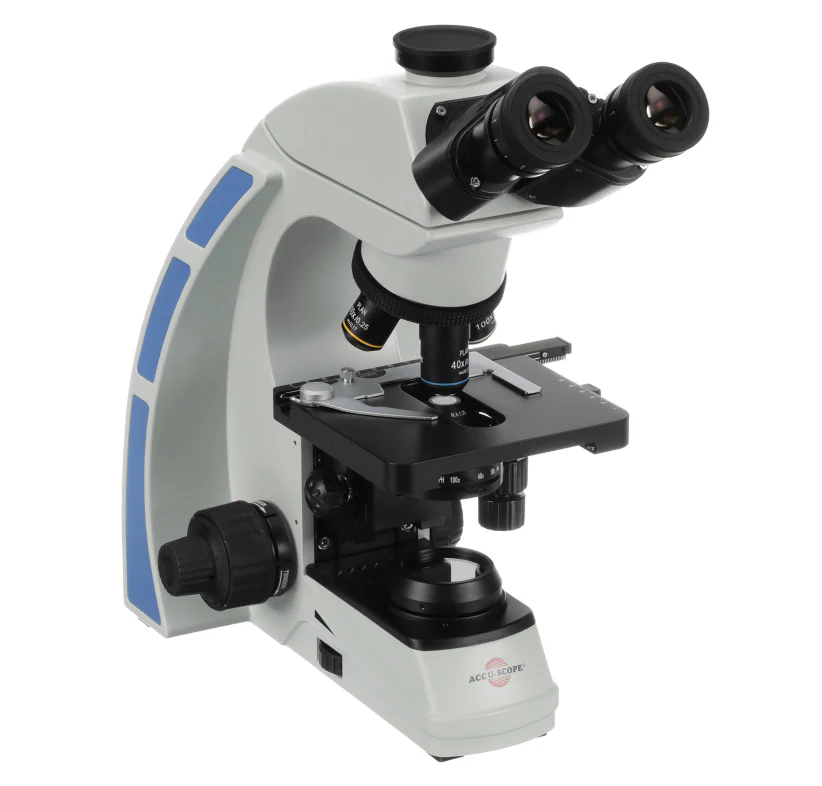

The Accu-Scope 3000 for live blood analysis comes with either a binocular or trinocular viewing head. The 10x eyepieces provide a wide 20mm field of view. Infinity plan achromat 4x, 10x, 40x, and 100x oil objectives are provided with this system. The darkfield slider provides darkfield under the 4x, 10x, and 40x objectives. The 100x lens on this system does not have an iris diaphragm therefore you will not get darkfield when using the 100x objective lens. The microscope uses a powerfull 3 watt LED illumination system.

    Specifications
    Head: Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰
    Eyepieces: HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece
    Nosepiece: Reversed, quadruple
    Objectives: Infinity Plan Achromat 4x, 10x, 40xR*, 100xR oil* (*spring-loaded)
    Stage: Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm
    Condenser: 1.25 N.A. Abbe Condenser w/ Darkfield Slider
    Illumination:

    3 watt LED with variable intensity control

    Universal power supply 110-220v
    Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
    Accessories: Dust cover, immersion oil & instruction manual included
    Warranty: 5 Year Mechanical & Electrical
    Select Title
    From $491.40

    Original: $1,638.00

    -70%
    Accu-Scope 3000 Live Blood Analysis - Darkfield Slider—

    $1,638.00

    $491.40
    Product image 1
    Product image 2
    Product image 3
    Product image 4

    Description

    The Accu-Scope 3000 for live blood analysis comes with either a binocular or trinocular viewing head. The 10x eyepieces provide a wide 20mm field of view. Infinity plan achromat 4x, 10x, 40x, and 100x oil objectives are provided with this system. The darkfield slider provides darkfield under the 4x, 10x, and 40x objectives. The 100x lens on this system does not have an iris diaphragm therefore you will not get darkfield when using the 100x objective lens. The microscope uses a powerfull 3 watt LED illumination system.

      Specifications
      Head: Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰
      Eyepieces: HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece
      Nosepiece: Reversed, quadruple
      Objectives: Infinity Plan Achromat 4x, 10x, 40xR*, 100xR oil* (*spring-loaded)
      Stage: Mechanical stage, 140 x 132mm with X-Y movement range of 76 x 50mm
      Condenser: 1.25 N.A. Abbe Condenser w/ Darkfield Slider
      Illumination:

      3 watt LED with variable intensity control

      Universal power supply 110-220v
      Focusing: Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
      Accessories: Dust cover, immersion oil & instruction manual included
      Warranty: 5 Year Mechanical & Electrical
