This is an upgraded version of the B390 binocular microscope, adding epi-fluorescence to one of our most popular microscopes for veterinarians, clinics, and classrooms. Its high-quality optics, precision mechanics, and overall scalability make this model a favorite for scaling labs. The epi-fluorescence functionality allows you to observe fluorescing specimens with incredible contrast. With filter blocks for blue and green excitation, a wide range of popular fluorophores are covered.

The binocular head can be customized for each user, with a sliding interpupillary adjuster for varying eye spacing, and diopters for both eyes to fine-tune focus for nearsighted users and for asymmetry. The head can be rotated 360°, and has a 45° incline for viewing while seated or standing. Interchangeable eyepieces allow for an expanded magnification range, or the use of special eyepieces with pointers and measuring reticles.

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 16X eyepieces expand the maximum magnification to 1600X with 8 unique levels. This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

The halogen sub-stage lighting provides bright illumination with excellent color rendering. The warm lighting is better suited for prolonged use, causing less eyestrain than LED and fluorescent lighting. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion movement for precise height adjustment.

Fluorescence

The epi-fluorescence illumination system adds incredible versatility to the microscope. The ability to isolate fluorescing compounds allows you to target individual proteins and other nuances. The illuminator uses a high-power mercury arc-lamp for wide-spectrum excitation, with two filter blocks for blue and green excitation, covering a wide range of popular labeling agents and natural fluorophores.

Filters

	Filter Set	Excitation Filter	Dichromatic Cut-on	Emission Filter
	B	490nm	510nm	530nm
	G2	545nm	580nm	590nm

Specifications

Optical System	Finite-conjugate

Mechanical Tube Length	160mm

Head	Binocular, 45° incline, 360° rotatable

Interpupillary Adjustment	sliding, 55-75mm

Ocular Diameter	23mm

Eyepieces	10X, 16X

Objective Lenses	DIN standard

Objective Parfocal Distance	45mm

Objective Mounting Thread	RMS 20.32mm

Objective Turret	quadruple

Focusing System	Coaxial coarse and fine focus

Focus Range	30mm

Division of Fine Focus	0.002mm

Stage Design	Double-layer with caliper

Stage Dimensions	140mm x 140mm

X-Y Translation Range	75mm x 50mm

Episcopic Illumination (fluorescence)	100W mercury HBO arc-lamp

Transmitted Illumination	20W halogen

Condenser	Abbe condenser with iris diaphragm, NA1.25, Ø 32mm filter holder

Sub-stage Condenser-holder	rack and pinion

Power	100-240VAC 50/60Hz wide-band

Dimensions	11" x7-1/2" x 15-3/4" (28cm x 19cm x 40cm)

Objective Lenses

Magnification	Corrections	NA	Immersion Medium	Cover-glass Thickness
4X	achromatic	0.10	—	0.17mm
10X	achromatic	0.25	—	0.17mm
40X	achromatic	0.65	—	0.17mm
100X	achromatic	1.25	oil	0.17mm

Packing List:

One Binocular Microscope with 4 DIN Objectives
One pair 10X eyepieces
One pair of 16x eyepieces
One mirror for ambient lighting
One dust cover
Three color filters
One spare halogen bulb (6V/20W)
One spare fuse
One episcopic illuminator with blue and green filter block
One 100W power supply
Two mercury-vapor bulbs
One UV-blocking eye-shield
Two power cords (US and Canada standard)
One sample bottle of immersion oil

40x - 1600x

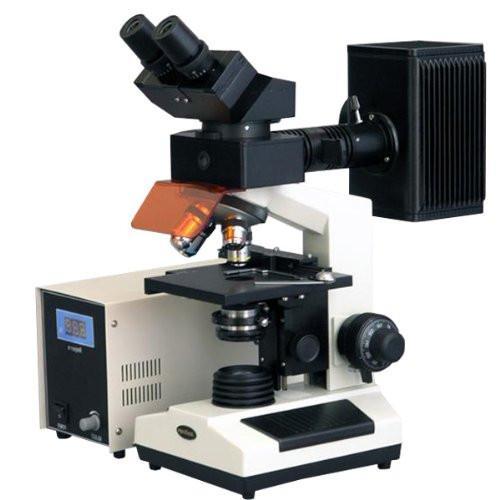

AmScope Binocular Compound Microscope EPI - Fluorescence - FM200BA
