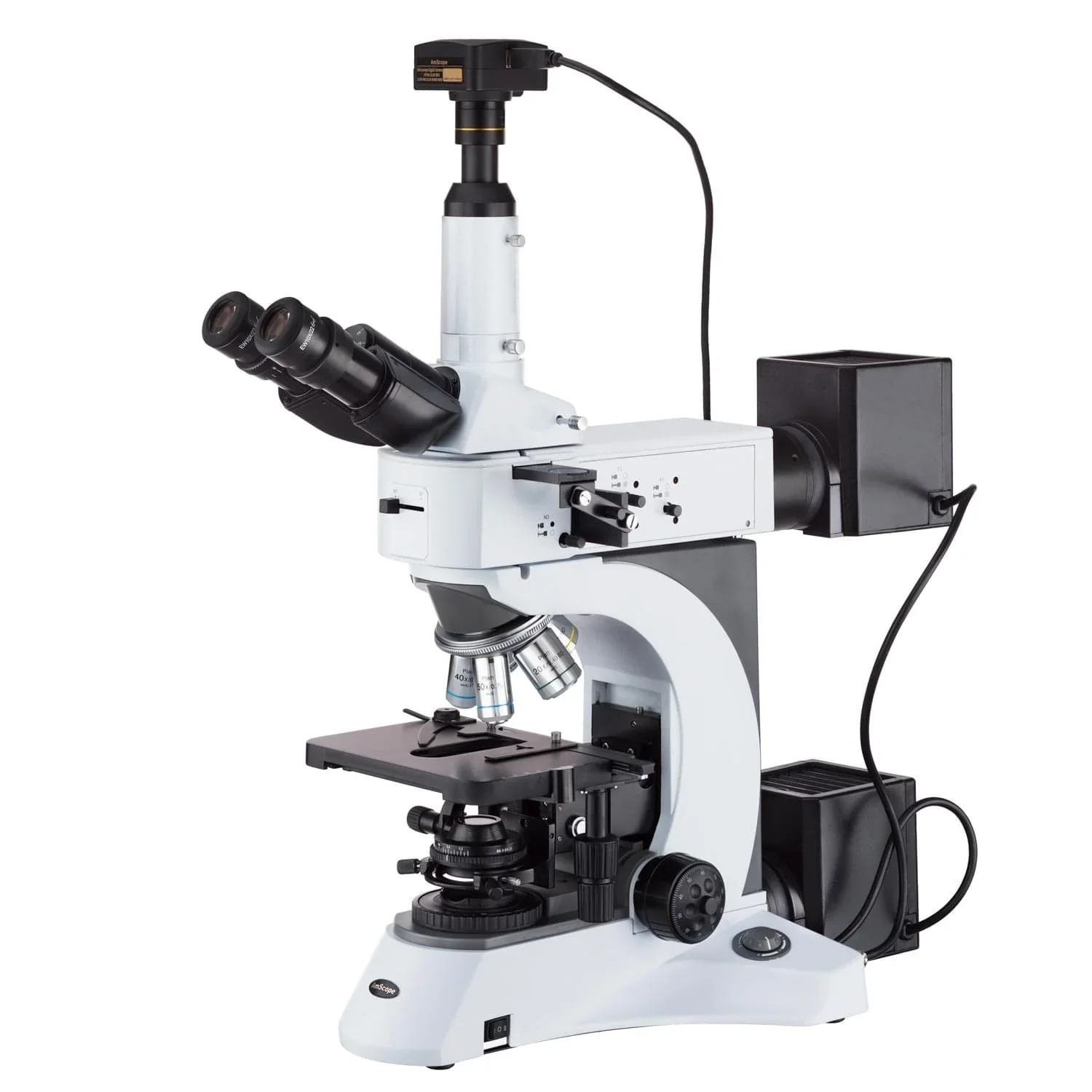

This is an up-right reflected and transmitted polarizing darkfield metallurgical microscopy system. The microscope comes with a quintuple nosepiece, seven infinitive Plan objectives, a built-in polarizer & analyzer, darkfield-viewing device, and both reflected (EPI) & transmitted illuminations. It offers nine metallurgical magnification settings (50X, 100X, 125X, 250X, 200X, 500X, 1250X, 1000X & 2500X) and three more levels of transmitted magnification settings (400X, 1000X & 2500X). It is a great instrument for both metallurgical (reflected) and biological (transmitted) applications.

The 14MP digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection, integrated circuit examination, production quality control, and R&D applications. It is an ideal instrument for metallurgical, mineral and crystal identification. It is also a great microscopy system for transmitted illumination applications including those in biological areas.

Features:

An advanced metallurgical microscopy system with reflected and transmitted illuminations

A great microscope for both reflected and transmitted applications

Built-in polarization system with polarizer and analyzer

Built-in bright/dark viewing field system with conversion slide

Quintuple nosepiece with three holes for bright field objectives and another two for darkfield

Seven infinitive Plan Achromatic objectives included

Eyepiece with 0.1mm micrometer and cross hair included

100 Watt halogen reflected EPI-illumination system

100 Watt halogen transmitted illumination system

EPI-illumination filters included

Photo/video capability with 23mm universal/standard photo port

Fully coated optical system with high resolution

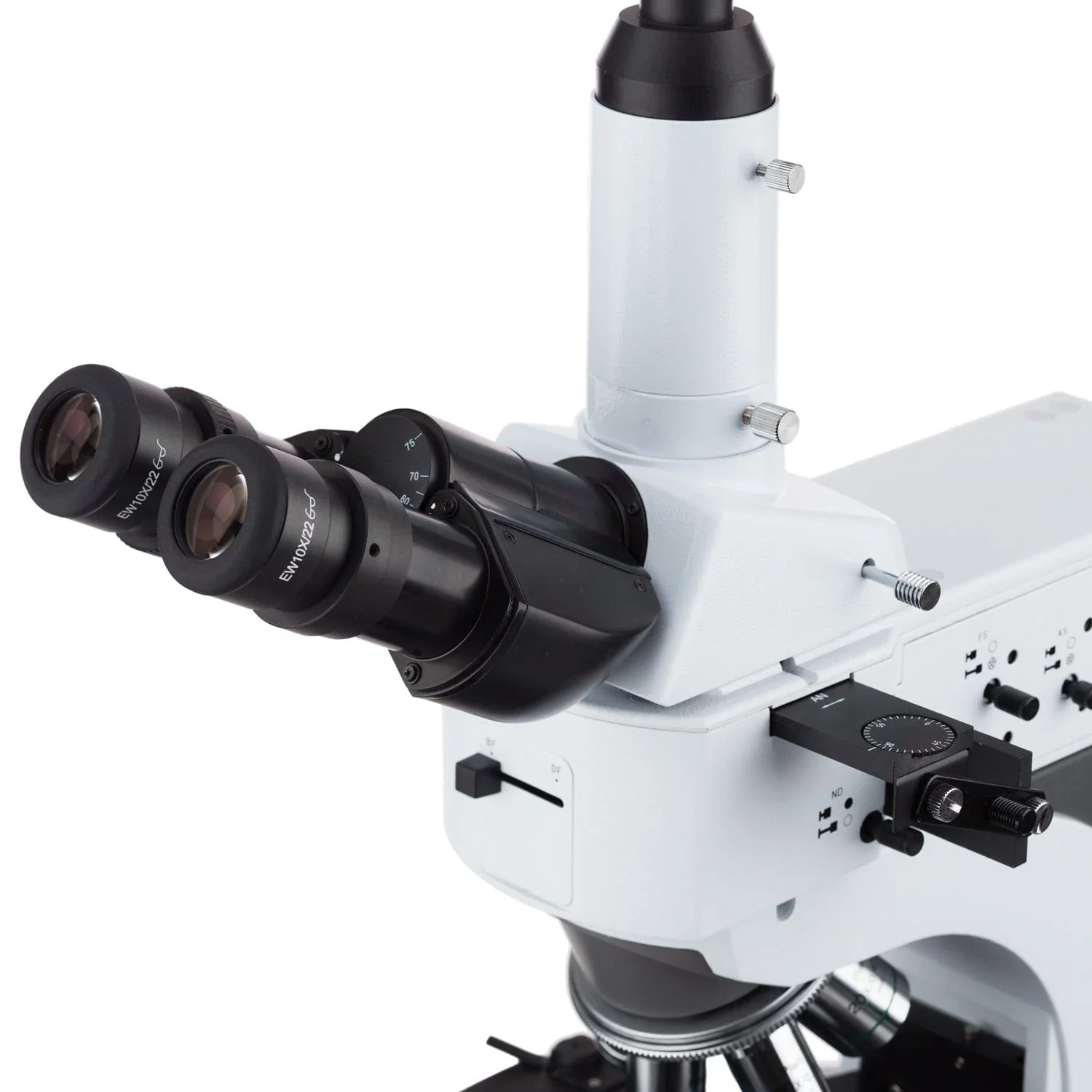

30 degree inclined 360 degree rotatable trinocular Siedentopf head

Nine levels of metallurgical magnification, 50X, 100X, 125X, 250X, 200X, 500X, 1250X, 1000X & 2500X

Three levels of transmitted (biological) magnification, 400X, 1000X & 2500X

Co-axial coarse & fine focusing system

Two sets of eyepiece included

Large mechanical stage with stain resistant finish

Low position stage traveling controls

Full optical glass elements

Precise ground glass lens

All metal mechanical parts

Coaxial coarse and fine focusing

Dual focusing control knobs

Focusing tension control mechanism

30 degree inclined 360 degree rotatable trinocular head

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Solid metal frame construction with stain resistant enamel finish

Spare bulb, fuse, bottle of immersion oil, and dust cover included

Manufactured under ISO 9001 quality control standards

Excellent five (5) year factory warranty

Specifications:

Head: 30 degree inclined trinocular

Eyepieces: WF10X/22 and WF25X/9

Nosepiece: quintuple nosepiece - 3 holes for bright field objectives and 2 holes for dark field objectives

Objectives: infinitive Plan Achromatic objectives, 5X/0.12, 10X/0.25, 20X/0.40, 50X/0.75 & 100X/0.90, for metallurgical applications and infinitive Plan Achromatic objectives, 40X/0.65 & 100X/1.25, for biological applications

Polarization System: built-in polarizer and analyzer

Bright/Dark Viewing Field System: built-in conversion slide for bright/dark field illumination

Diaphragm: Epi-illuminator with Iris aperture diaphragm and iris field diaphragm

Stage: double layer mechanical stage with size 185X142mm

Illumination Systems: 24V 100W T-H lamp for metallurgical applications (intensity adjustable, lamp centering adjustable) and built-in 24V 100W T-H lamp for biological applications (intensity adjustment)

Collector: centering adjustable Kohler collector with field iris diaphragm

Vertical Photo/Video Port: 23mm universal/standard photo tube (100%-0% or 20%-80%)

Power Supply: Wide Band, CE certified

Camera Specifications:

Sensor: ONSemi (color)

Sensor Type: CMOS

Sensor Size: 6.138x4.603mm

Pixel Size: 1.4µm

Resolution: 14MP

Frame Rate: 54fps @1024x822, 21fps @2048x1644, 6.2fps @4096x3286

Sensitivity: 0.724V / Lux-sec (550nm)

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed

Contents:

One Trinocular Microscope Siedentopf Head

One Microscope Body with Frame, Stage, Base and EPI & Transmitted Illumination System

Five (EPI) Infinitive Plan Metallurgical Objectives, 5X (0.12), 10X (0.25), 20X (0.40), 50X (0.75) and 100X (0.90)

Two (Transmitted) Infinitive Plan Achromatic Objectives, 40X (0.65) and 100X (1.25)

One Pair of Extreme Widefield 10X Eyepieces

One Pair of Extreme Widefield 25X Eyepieces

One Extreme Widefield 10X Eyepiece with 0.1mm Micrometer and Cross Hair

One Set of Polarizer and Analyzer

One Set of Filters

Two (top & bottom) Light Houses

One Dust Cover

Two Spare Bulbs

Two Fuses

One Dust Cover

Immersion Oil Sample Included

Necessary Connection Cables Included

User's Microscope Manual Included

One 14MP USB3.0 Digital Camera

One 6' (1.8m) USB Cable

Two Sizing Adapters

One software disc

Shipping Weight: 60 lbs

Package: 2 (40 + 20)

AmScope ME520TC-14M3 Microscope

14.0 M.P.

AmScope 50X-2500X Darkfield Polarizing Metallurgical Microscope + 14MP Camera
